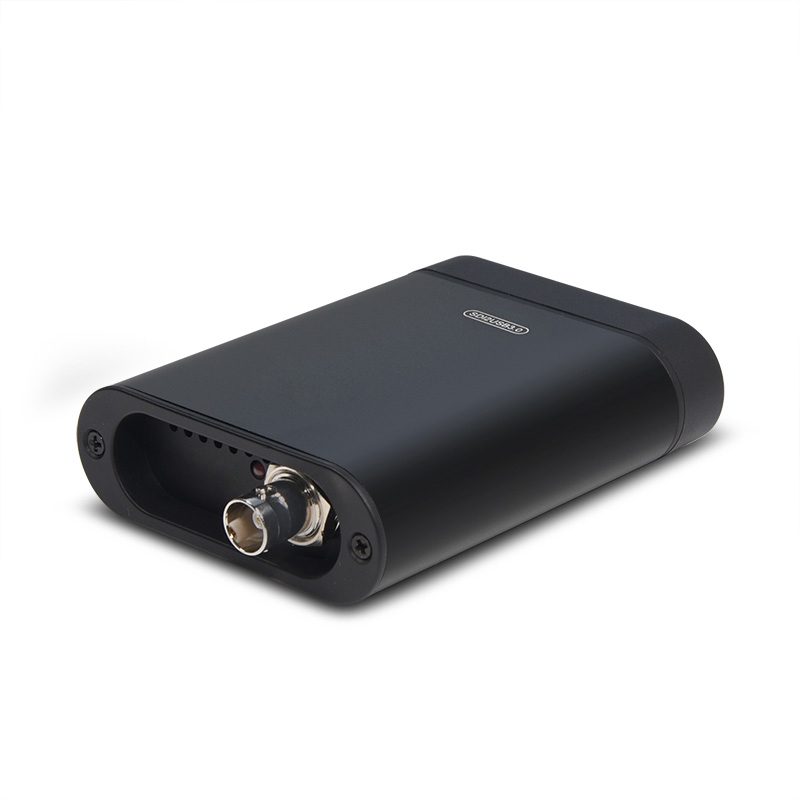

3G-SDI video signal audio and video signal BNC interface;
3G-SDI video signal audio and video signal BNC interface;
The input and output video signals can reach 1080p/60;
Key advantage: 3G-SDI video signal audio and video signal BNC interface;
| Model | ZY-UCS101 |
|---|---|
| Video Input | SDI*1 |
| USB Output | USB3.0*1 |
| Resolution | 高达1080P60Hz |
| Operating System | Windows |
| Transmission Rate | SDI：1.485&2.97Gb/s |
| Output Color Space | YUY2 |
| Dimensions | 70×100×24mm ① 双击运行" OBS.exe " 程序，添加“视频捕获设备”，如下图 |
| ②帧率 | 设置输出帧率，目前支持帧率有25/29.97/30/50/ 59.94/60 fps |
| ③色彩空间/压缩 | 目前提供2种色彩空间供选择,YUY2、RGB24 |
| ④输出大小 | 自动判断输入视频格式，并自动变换至指定的输出大小 USB3.0输出： 1920x1080, 1920x960，1680x1050, 1280x720, 1024x768，960x540, 720x576, 720x540, 720x480, 720x404, 704x576，640x480, 640x360 USB2.0输出： 1920x1080, 1920x960，1680x1050, 1280x720, 1024x768，960x540, 720x576, 720x540, 720x480, 720x404, 704x576，640x480, 640x360 ⑤ 设置亮度、对比度、色调、饱 |
3G-SDI video signal audio and video signal BNC interface;
The input and output video signals can reach 1080p/60;
UVC compatible video capture, YUV422 video output;
No need to install drivers, true PnP;
Ultra low power consumption, no need for an external power adapter, direct USB power supply;
USB3.0, 360MB/s transmission bandwidth;
The video processing is completed by the capture stick and does not occupy the host CPU;
Brightness, contrast, color tone, saturation and other image adjustment functions;
Capture PS5/Switch/Xbox and stream to Bilibili, Twitch, YouTube.
Feed cameras and medical imaging into OBS, Zoom, Teams.
Capture document cameras and camcorders for course recording.
Multiple cards in one PC with vMix/OBS switching.
Most models are UVC driver-free on Windows, macOS and Linux.
4K models support up to 4K@60 input and loop-out; 1080p models up to 1080p60.
Works with OBS, vMix and XSplit to stream to Bilibili, YouTube, Twitch and more.
Yes, multi-card operation is supported for multi-camera production.
