Name: H.265 4K HD transcoder with embedded RTMP server
Brand: ORIVISION
SKU: ZY-DH941
Availability: InStock

Model: ZY-DH941

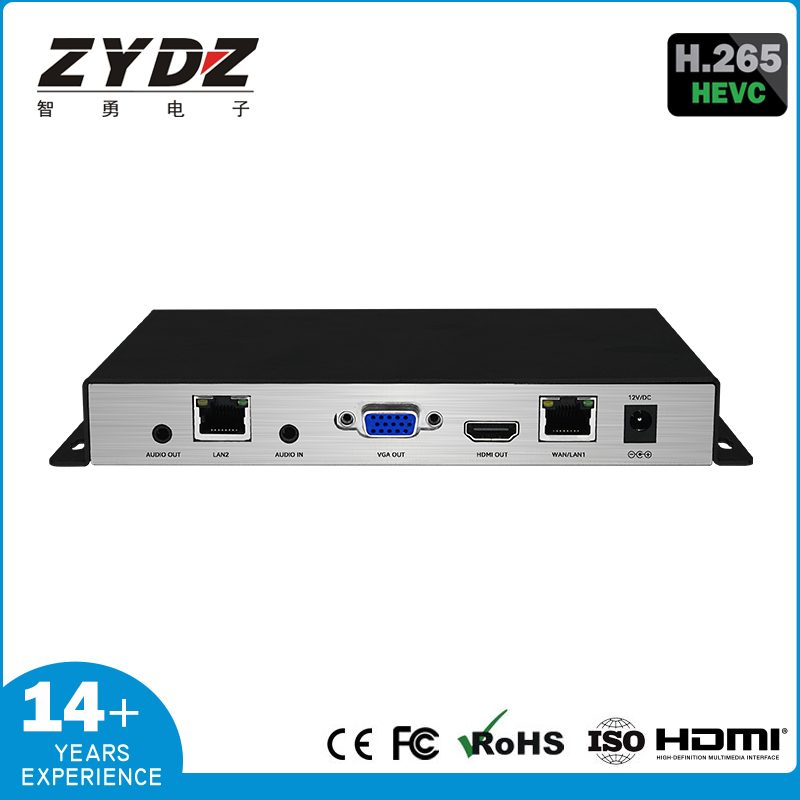

The transcoding device has 2 network ports, 1 HDMI audio and video output interface, 1 VGA video output interface, and 1 stereo audio output. It can receive network streams from encoders, cameras, and other devices through port 1 and forward them to network 2. Implement multicast forwarding in different network segments; Internal network circulation to external network; RTSP to RTMP slow live streaming (background audio can be inserted).

Model ZY-DH941

Decoding Format H.265/H.264

Decoding Capability 1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding

Input Interface RJ45*1, Audio * 1

Output Interface HDMI*1, VGA*1, Audio * 1

Resolution Up to 3840* 2160@30Hz

Streaming Protocols Supports HTTP, HTTPS, RTSP, RTMP, SRT, UDP/RTP (unicast and multicast) protocols

Built-in RTMP Server Maximum concurrency of 1Gbps/S

Request a Quote

Overview

This product supports POE power supply, embedded RTMP server, and can support a maximum concurrent data volume of 1Gbps.

It can be used as a small streaming media server and can be widely applied in various high-definition video systems such as multimedia publishing, digital signage, signal publishing, and urban slow live streaming.

Key advantage: Support the transfer from port 1 to port 2

Specifications Summary

Product Model	ZY-DH941
Decoding Format	H.265/H.264
Decoding capability	1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Input interface	RJ451, Audio 1
Output interface	HDMI1, VGA1, Audio * 1
Resolution	Up to 3840* 2160@30Hz
Support streaming media protocols	Supports HTTP, HTTPS, RTSP, RTMP, SRT, UDP/RTP (unicast and multicast) protocols
Embedded RTMP server	Maximum concurrency of 1Gbps/S
Protocol forwarding	Up to 9 protocol forwarding channels: RTSP/HTTP/UDP/HTTPS/SR/RTMP to RTMP/RTMPS/DUP/RTP
Device dimensions	20011326mm
Weight	0.35kg

Key Features

Support the transfer from port 1 to port 2

Support inserting audio into forwarding streams

Supports POE power supply (optional)

Embedded RTMP server, supporting up to 1Gbps concurrency

Supports up to 9 protocol forwarding channels: RTSP/HTTP/UDP/HTTPS/SRT/RTMP to RTMP/RTMPS/DUP/RTP

Support local preview output, up to 9 channels of 720P preview

Supports up to 3840 × 2160 output (HDMI interface)

H. Decoding of 265 Baseline Profile

H. Decoding of 264 Baseline Profile

H.264 Main Profile decoding

Applications

Decoding in the monitoring center and installing it on the wall

Receive network streams and restore them to HDMI and VGA signals for output to a spliced large screen, supporting multi screen split display.

Digital signage and information dissemination

1-channel decoding output, suitable for multi screen timed round robin playback in shopping malls and business halls.

Video conferencing and distance education

Restore the IP stream to HDMI and VGA for accessing conference terminals and teaching display devices, with clear and stable images.

IPTV and Hotel Television System

Integrate encoder TS/multicast streams to provide television signal sources for hotels, hospitals, and nursing homes.

FAQ

What is the highest supported resolution?

The specification parameter is up to 3840* 2160@30Hz Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, HTTPS, RTSP, RTMP, SRT, UDP/RTP (unicast and multicast) protocols. Can interface with mainstream platforms, NVRs, and streaming media servers.

What is the size of the equipment and how to install it?

The appearance specification is 200 * 113 * 26mm, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Does it support PoE power supply?

The specifications indicate support for PoE power supply (optional configuration), and a single Ethernet cable can simultaneously complete power supply and signal transmission, making it suitable for points with difficulty accessing power. Whether it is standard or not, please refer to the actual shipping configuration.

Technical Specifications

Full Parameter Table

Product Model	ZY-DH941
Video output	1-channel HDMI, VGA select output
Output Resolution	3840× 2160@30hz; 1080P@60 / 1080P@50 / 1080P@30 720P@60 720P@50; 576P@50 480P@60 1280× 1024@60; 1280× 800@60 1024× 768@60; 800× 600@60 For downward compatibility with special resolutions, please contact sales for consultation
Decoding algorithm	H.265/H.264
Decoding capability	1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Audio output	1 audio output
Audio decoding format	AAC/MP3/G711/MP2/AC3
Volume	The volume can be adjusted
Network input port	1000M RJ45 Ethernet port
Support streaming media protocols	HTTP, HTTPS, RTSP, RTMP, SRT, UDP/RTP, SRT protocols
Embedded RTMP server	Maximum concurrency of 1Gbps/S
Protocol forwarding	HTTP, HTTPS, RTSP, RTMP, SRT, UDP/RTP, SRT protocols
LCD screen display	Up to 9 protocol forwarding channels: RTSP/HTTP/UDP/HTTPS/SR/RTMP to RTMP/RTMPS/DUP/RTP
Configuration Interface	WEB operation interface
Upgrade	Software upgrade can be done through the network
Power supply	12V/DC 1A
Size	20011326mm
Weight	0.35kg
Operating Temperature	0~45°C
Operating Humidity	<90%, no condensation
