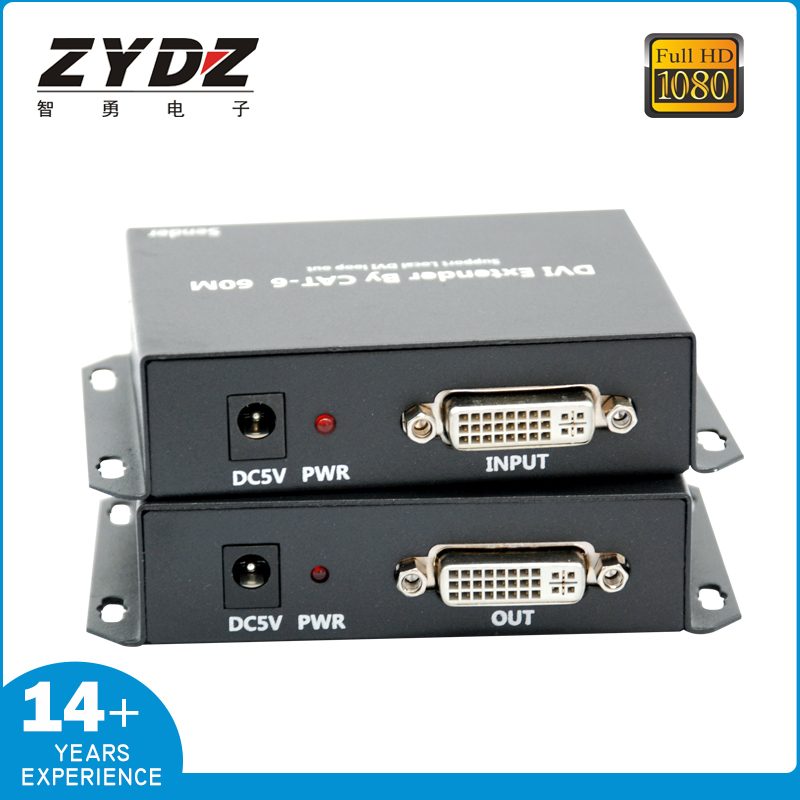

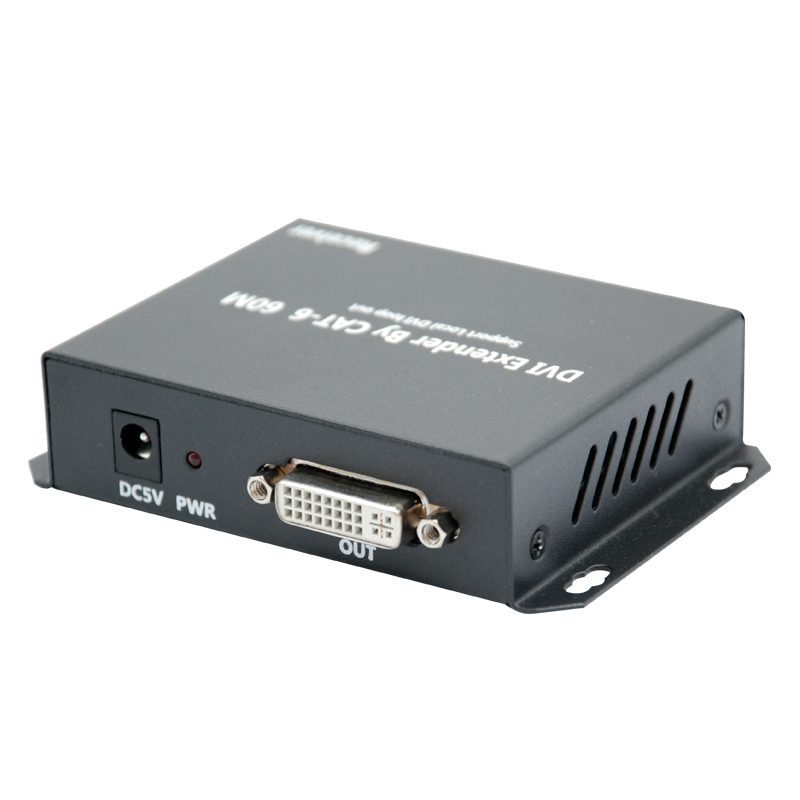

ORIVISION DVI extender 60 meters 1080p high-definition single Ethernet cable network transmission DVI loop out video surveillance camera

ORIVISION DVI extender 60 meters 1080p high-definition single Ethernet cable network transmission DVI loop out video surveillance camera

Name: ORIVISION DVI extender 60 meters 1080p high-definition single Ethernet cable network transmission DVI loop out video surveillance camera
Brand: ORIVISION
SKU: ZY-DVI-60T/R
Availability: InStock

Model: ZY-DVI-60T/R

Supports HDMI 1.4a version

Model ZY-DVI-60T/R

Max Bandwidth 340MHz

Max Data Rate 3.4Gbps

Cable Using standard DVI specification cables, cat5e/6

Dimensions 81×61×24mm(RX/TX)

Weight Single unit 100g

DVI input interface24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Request a Quote

Overview

Supports HDMI 1.4a version

4Gbps

Key advantage: Supports HDMI 1.4a version

Specifications Summary

Product Model	ZY-DVI-60T/R
Maximum transmission bandwidth	340MHz
Maximum transmission rate	3.4Gbps
Cable requirements	Using standard DVI specification cables, cat5e/6
Size	81×61×24mm(RX/TX)
Weight	Single unit 100g
Signal transmission	Replace the DVI cable with a Cat5 or Cat6 cable (recommended). The cable between the receiver and transmitter can reach up to 60 meters in length and support the highest video resolution of 1080P/60Hz. It complies with the IEEE-568B standard and supports a maximum speed of 3.4Gbps. The TMDS clock has a maximum bandwidth of 340MHz and supports 8/10/12 bit dark colors. It also supports one DVI local loop output
Transmitting end	100g
Receiving end	100g power supply 5V/1A power consumption working temperature working humidity storage temperature plug and play - distributed network matrix splicing system. pdf ORIVISION full product brochure. pdf

Key Features

Supports HDMI 1.4a version

Applications

Conference room high-definition extension

The 60 meter Cat6 Ethernet cable connecting the camera to the display screen has a much lower wiring cost than dedicated cables.

Multimedia Teaching System

Signal extension and distribution in multimedia classrooms and lecture halls, with clear and stable 1080P images.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is 340MHz. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the size of the equipment and how to install it?

The appearance specification is 81 × 61 × 24mm (RX/TX), and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Does it support custom development?

Support OEM/ODM customization and provide API protocol documentation for secondary integration development. If you have any project requirements, please contact us for confirmation.

Technical Specifications

Full Parameter Table

Product Model		ZY-DVI-60T/R
Video input/output		The Cat5 or Cat6 cable connecting the DVI extender receiver and transmitter can reach up to 60 meters in length
DVI input		24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DVI output		24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Maximum transmission bandwidth		340MHz
Maximum transmission rate		3.4Gbps
Cable requirements		Using standard DVI specification cables, CAT5/6
Size	Length x Width x Height	816124mm(RX/TX)
Net weight		Sender: 100g Receiver: 100g
Power supply		5V/1A
Operating Temperature		-15°C to +55°C
Storage temperature		-20°C to +85°C
