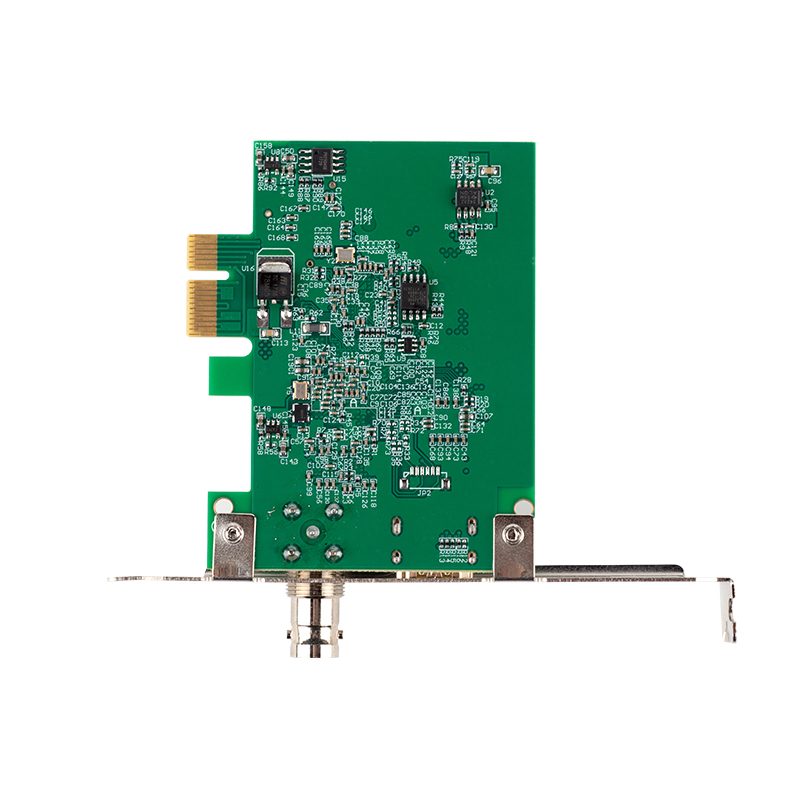

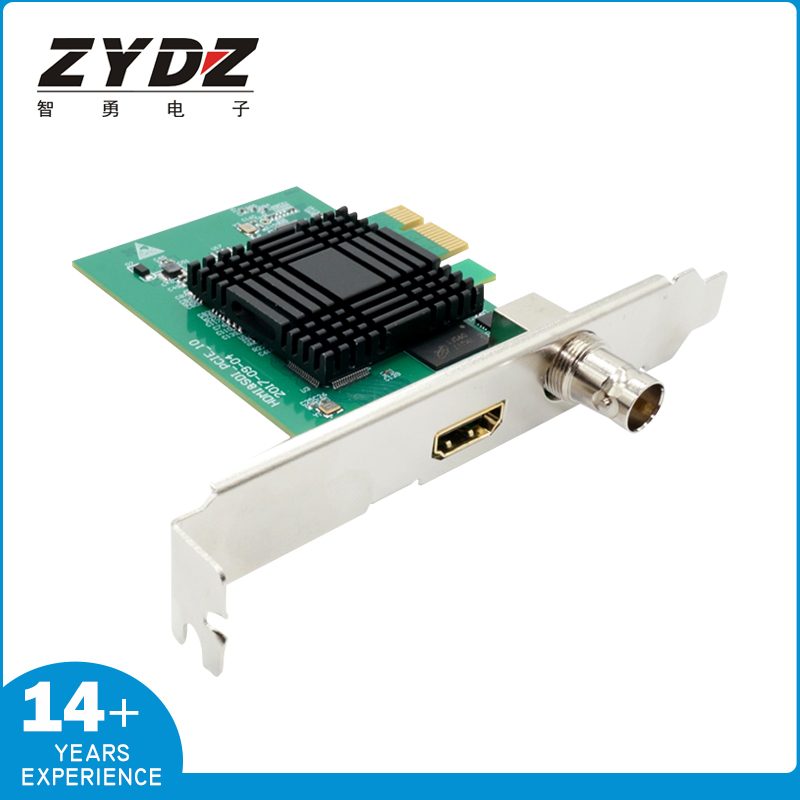

Name: Zhiyong HD HDMI/SDI Capture Card PCI E Capture USB3.0 Image Conference Medical Game Live Streaming
Brand: ORIVISION
SKU: SHCP01
Availability: InStock

Model：SHCP01

Single channel HD/3G-SDI video signal input, single channel HDMI video signal input, HDMI video signal priority input

ModelSHCP01

Video Input1 路 HD/3G-SDI 视频信号，1 路1080P60 HDMI高清视频信号

Output InterfacePCI-Express，360MB/s 传输带宽

Resolution高达1080P60Hz

Output Color SpaceYUY2

Operating System支持以下操作系统的x86 和x64 版本：Windows 7、8.1、10，Windows Server 2008 R2

兼容软件Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast 等…

Dimensions122x100x22mm （一）PCI-E 3.0，向下兼容PCI-E 2.0、PCI-E 1.0，360MB/s 传输带宽。（二）视频处理由采集卡完成，不占用主机CPU。（三）自动判断输入视频格式，并自动变换至指定的输出大小、帧率。 1）1920x1080P@60/50, 1920x960P@60/50, 1680x1050P@60/50, 1280x720P@60/50, 1024x768P@60/50,960x540P@60/50, 850x480P@60/50, 800x600P@60/50, 1920x1080P@60/50, 720x576P@60/50, 720x480P@6

Request a Quote

Overview

Single channel HD/3G-SDI video signal input, single channel HDMI video signal input, HDMI video signal priority input

Input and output video signals can reach 1080p/60, high-definition without compression

Key advantage: Single channel HD/3G-SDI video signal input, single channel HDMI video signal input, HDMI video signal priority input

Specifications

Model	SHCP01
Video Input	1 路 HD/3G-SDI 视频信号，1 路1080P60 HDMI高清视频信号
Output Interface	PCI-Express，360MB/s 传输带宽
Resolution	高达1080P60Hz
Output Color Space	YUY2
Operating System	支持以下操作系统的x86 和x64 版本：Windows 7、8.1、10，Windows Server 2008 R2
兼容软件	Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast 等…
Dimensions	122x100x22mm （一）PCI-E 3.0，向下兼容PCI-E 2.0、PCI-E 1.0，360MB/s 传输带宽。（二）视频处理由采集卡完成，不占用主机CPU。（三）自动判断输入视频格式，并自动变换至指定的输出大小、帧率。 1）1920x1080P@60/50, 1920x960P@60/50, 1680x1050P@60/50, 1280x720P@60/50, 1024x768P@60/50,960x540P@60/50, 850x480P@60/50, 800x600P@60/50, 1920x1080P@60/50, 720x576P@60/50, 720x480P@6

Key Features

Feature 1

Single channel HD/3G-SDI video signal input, single channel HDMI video signal input, HDMI video signal priority input

Feature 2

Input and output video signals can reach 1080p/60, high-definition without compression

Feature 3

YUV422 video output

Feature 4

Windows operating system

Feature 5

PCI Express slot

Feature 6

485Gb/s，2.97Gb/s

Applications

Game Streaming

Capture PS5/Switch/Xbox and stream to Bilibili, Twitch, YouTube.

Video Conferencing

Feed cameras and medical imaging into OBS, Zoom, Teams.

Online Education

Capture document cameras and camcorders for course recording.

Multi-Camera Production

Multiple cards in one PC with vMix/OBS switching.

FAQ

Do I need to install drivers?

Most models are UVC driver-free on Windows, macOS and Linux.

Is 4K capture supported?

4K models support up to 4K@60 input and loop-out; 1080p models up to 1080p60.

Can I use it for live streaming?

Works with OBS, vMix and XSplit to stream to Bilibili, YouTube, Twitch and more.

Can I use several cards in one PC?

Yes, multi-card operation is supported for multi-camera production.
