H.265 8-channel HDMI 4K Ultra HD Video Encoder

Name: H.265 8-channel HDMI 4K Ultra HD Video Encoder
Brand: ORIVISION
SKU: ZY-EH1308
Availability: InStock

Overview

The HDMI high-definition encoder is a professional high-definition audio and video encoding product that only requires a small bandwidth to obtain high-definition video signals. This product adopts H.265/H.264/MJPEG encoding format, which can encode both video and audio simultaneously. Each channel supports dual stream output, and the resolution of each output stream can be set according to different needs. It can support up to 4 channels at the same time 4K@30Hz +4 routes 1080P@60Hz code. This device has the advantages of high integration and low cost, and can be widely used in various digital TV broadcasting systems.

Key advantage: Maximum simultaneous support for 4 channels 4K@30 +4 routes 1080@60 Encoding

Specifications Summary

Product Model	ZY-EH1308
Encoding format	H.265/H.264/MJPEG
Resolution	Output up to 3840 × 2160@30HZ, 1920× 1080P@60HZ
Input interface	HDMI8, Audio 8
Output interface	RJ45*2
Network protocol	Supports protocols such as HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP multicast, UDP unicast, FLV, HLS, etc. (RTMP supports username and password input)
Product Dimensions	48.5cm×21.5cm×4.5cm
Product weight	1.75kg
Stream control	CBR/VBR rate control, 16kbit/s~16Mbit/s network interface adopts 1000M full duplex mode, supporting HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols (RTMP supports username and password input function)

Key Features

Maximum simultaneous support for 4 channels 4K@30 +4 routes 1080@60 Encoding

No need to connect video, can encode audio separately

Support web online preview

Fully supports ONVIF/GB28181 protocol and can be connected to NVR security platform

Using standard H265/H264/MJPEG encoding

Audio encoding supports MP2/AAC/G711/AC3

Audio supports left and right channels, and supports volume adjustment

Applications

Multi platform online live streaming promotion

Through RTMP, SRT, RTSP, HLS protocols, it is directly pushed to stations B, Tiktok, YouTube and other platforms, and 4K input is suitable for live events and e-commerce.

Security monitoring platform access

Supports ONVIF/GB28181 integration with mainstream NVRs and security management platforms, suitable for cloud based monitoring of parks and buildings.

IPTV and Digital Television Broadcasting

Output TS/UDP multicast streams, compatible with hotel IPTV, digital signage, and streaming media servers.

Medical demonstration and surgical live streaming

4K high-definition encoding combined with low latency transmission, used for teaching in operating rooms, remote consultations, and recording of high-quality courses.

FAQ

What is the highest supported resolution?

The specification parameter is an output of up to 3840 x 2160@30HZ, 1920× 1080P@60HZ Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols (RTMP supports username and password input). Can interface with mainstream platforms, NVRs, and streaming media servers.

What is the size of the equipment and how to install it?

The appearance specifications are 48.5cm × 21.5cm × 4.5cm, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Technical Specifications

[Product Features]

Product Model		8-channel HDMI Ultra HD Encoder/ZY-EH1308

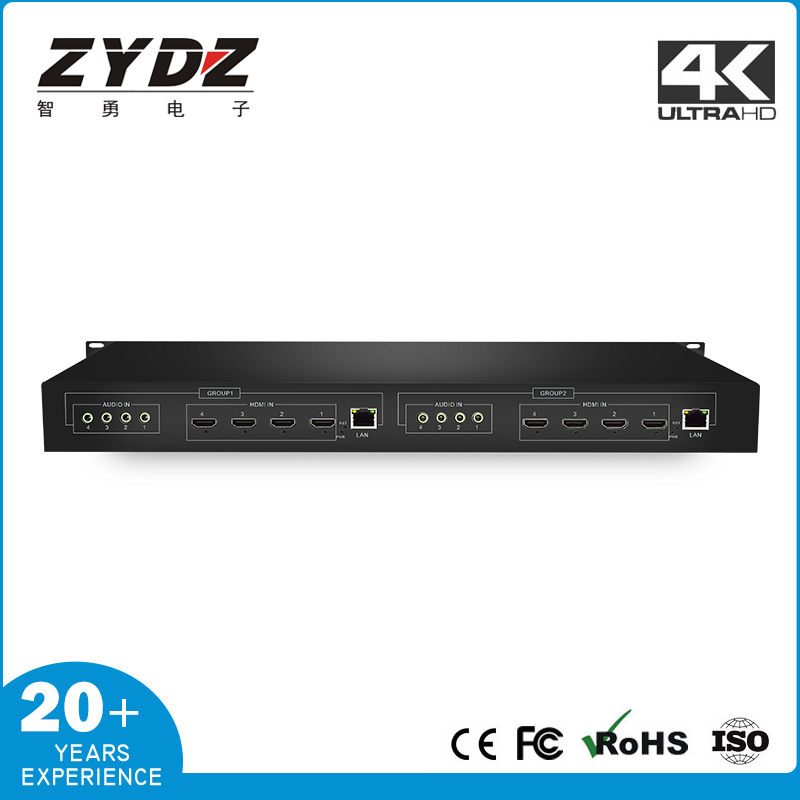

Video and audio input	video input	8-channel HDMI video interface
	Input resolution	3840× 2160@30HZ \Conventional resolutions such as 2650 × 2048 \ 2650 × 2048 \ 2560 × 1920 \ 2560 × 1600 \ 2560 × 1400 \ 2048 × 1536 \ 2048 × 1152 \ 2048 × 1080 \ 1920 × 1400 \ 1920 × 1200 \ 1920 × 1080 \ 1600x1200 \ 1400x1050 \ 1440x900 \ 1280x1024 \ 1280x960 \ 1280x800 \ 1024x768 \ 800x600 \ 720 × 576 \ 1080P \ 1080i \ 720P
	audio input	8-channel HDMI built-in audio, 8-channel 3.5 analog audio input
Video and audio encoding parameters	video encoding	H.265 Baseline Profile Encoding H.264 Baseline Profile Encoding H.264 Main Profile Encoding H.264 High Profile Encoding MJPEG
	Size after encoding	3840× 2160@30Hz \2650 × 2048 \ 2650 × 2048 \ 2560 × 1920 \ 2560 × 1600 \ 2560 × 1400 \ 2048 × 1536 \ 2048 × 1152 \ 2048 × 1080 \ 1920 × 1400 \ 1920 × 1200 \ 1920 * 1080 \ 1280 * 720 \ 1024 * 576 * 960 * 540 \ 850 * 480 \ 720 * 576 * 720 * 540 \ 720 * 480 \ 720 * 404 \ 704 * 576 * 640 * 480 \ 640 * 360 \ Default input resolution
	Video Bitrate	CBR/VBR Rate Control 16Kbps-20Mbps Adjustable
	HDCP	1.4
	Video frame rate	Video frame rate 4K ≤ 30 frames per second 1080 ≤ 60 frames per second
	Subtitle overlay	Chinese, English, and images
	Audio Encoding	MP2/AAC/G711/AC3 optional
	Audio bitrate	64Kb/s~384Kb/s
	sampling rate	32000, 44100, 48000, etc
Network parameters	network interface	2, RJ45 1000M adaptive Ethernet ports
	network protocol	Supports HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, GB28181, RTP, UDP, multicast, unicast FLV, HLS
	Stream code type	TS stream, ES stream
	interface protocol	ONVIF GB28181
	Configuration Management	WEB configuration, remote upgrade

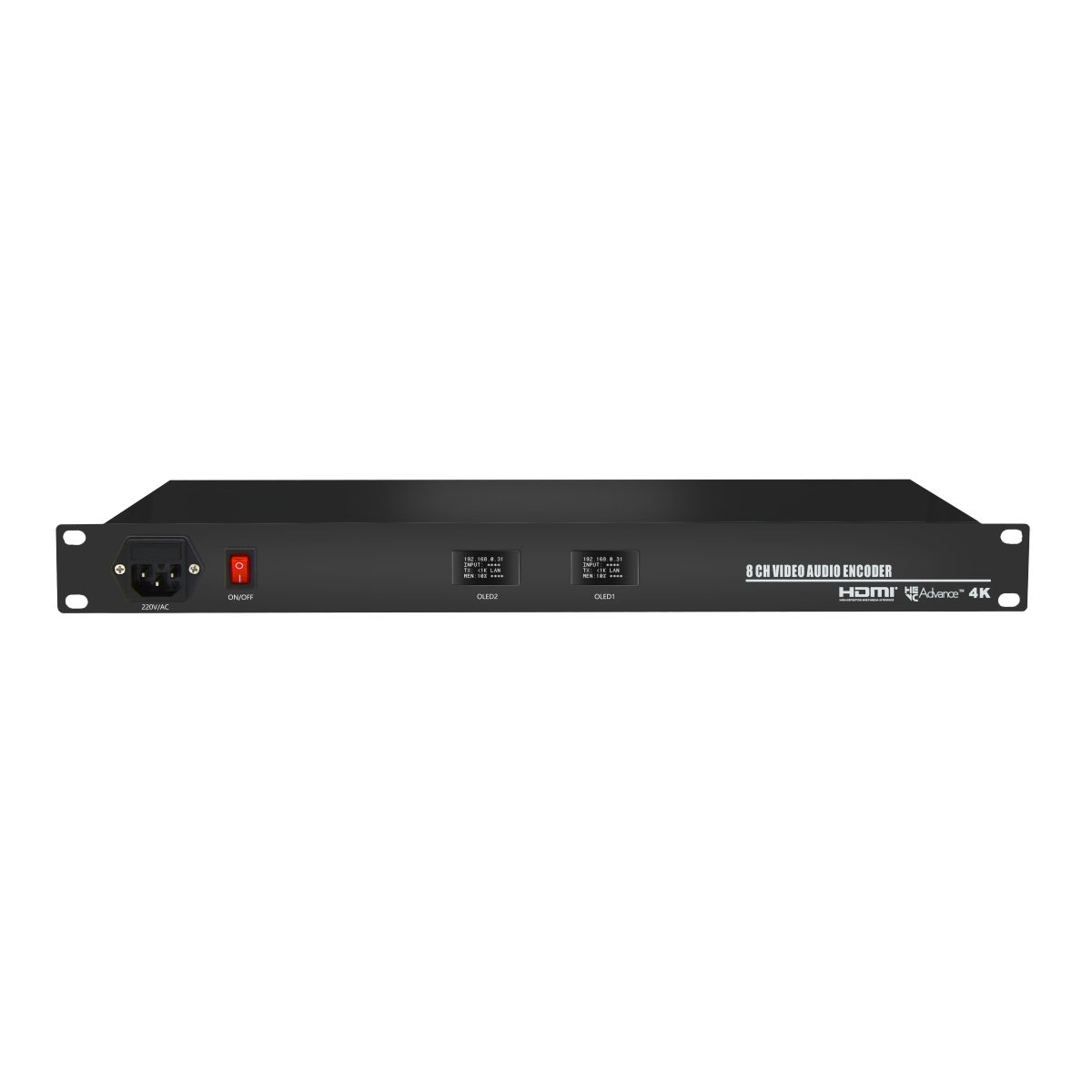

General	Power supply	220V/DV
	power consumption
	Operating Temperature	-20°C to +60°C
	Operating Humidity	<90%, no condensation
	Dimensions (length x width x height)	48.5cm×21.5cm×4.5cm
	weight	1.75kg
