Name: H.265 VGA high-definition video encoder with local loop output
Brand: ORIVISION
SKU: ZY-EV1401
Availability: InStock

Model: ZY-EV1401

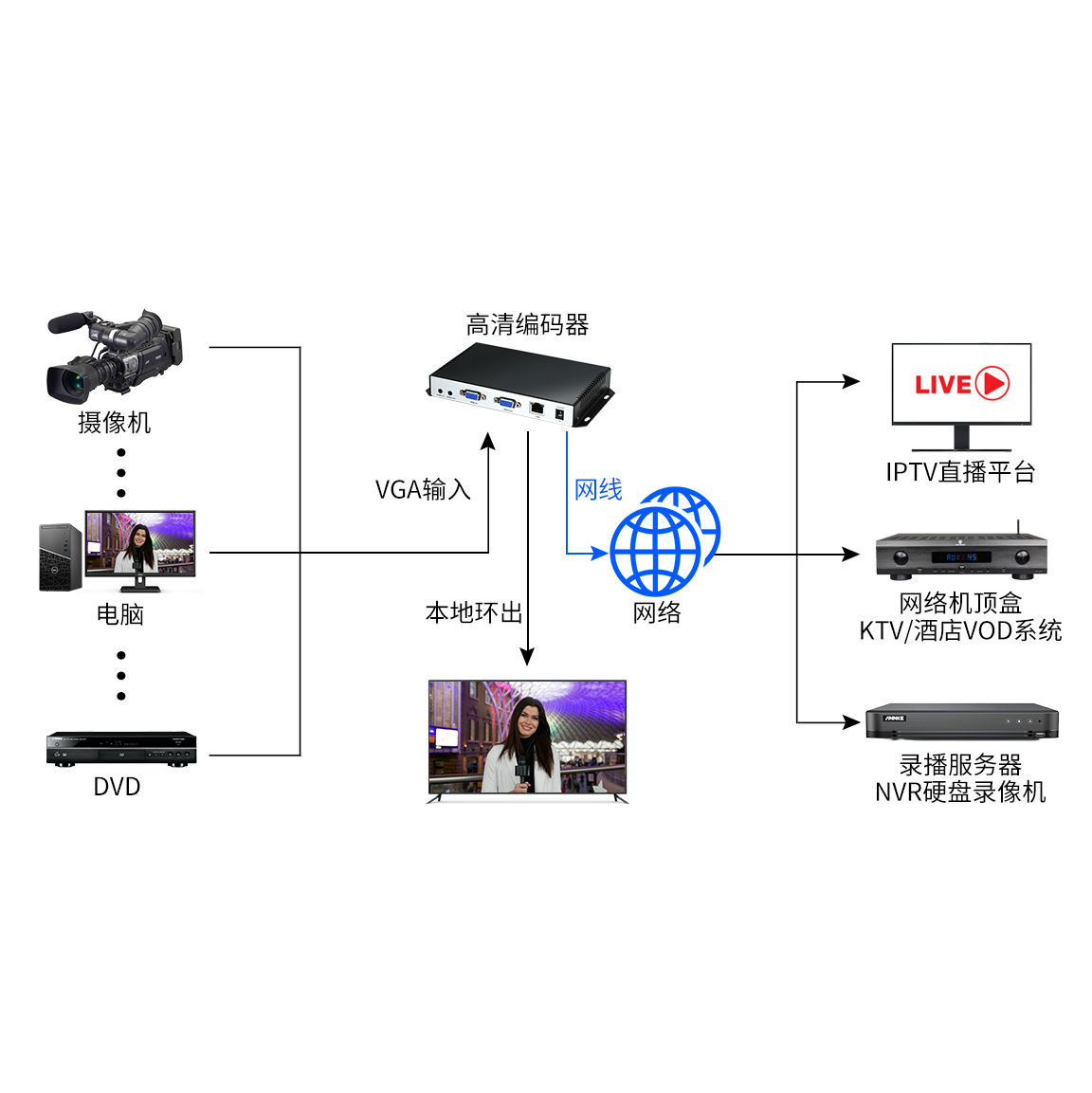

VGA high-definition encoder (acquisition box) is a professional high-definition audio and video encoding product that only requires a small bandwidth to obtain high-definition video signals. This product adopts H.265/H.264 dual encoding format, which can encode both video and audio simultaneously. Supports simultaneous output of 4 streams, and the resolution of each output stream can be set according to different needs. Supports POE power supply, no need to connect video, can encode audio separately. This device has the advantages of high integration and low cost, and can be widely used in various digital TV broadcasting systems. Support 3U structure, one chassis can insert 16 acquisition cards, dual power redundancy structure, more stable system. Perfectly supports VLC decoding.

Model ZY-EV1401

Video Encoding H.265/H.264

Input Interface VGA*1, Audio * 1

Output Interface VGA*1, Audio * 1, network port * 1

Resolution Up to 1920* 1080@60Hz

Network Protocols HTTP, RTSP, RTMP, RTMPS, SRT, onvif, GB28181, RTP, UDP, Multicast, Unicast FLV, HLS

Dimensions 166*110*25mm

Weight 0.3kg

Request a Quote

Overview

Key advantage: Using standard H265/H264 encoding

Specifications Summary

Product Model	ZY-EV1401
Video encoding	H.265/H.264
Input interface	VGA1, Audio 1
Output interface	VGA1, Audio 1, network port * 1
Resolution	Up to 1920* 1080@60Hz
Network protocol	HTTP, RTSP, RTMP, RTMPS, SRT, onvif, GB28181, RTP, UDP, Multicast, Unicast FLV, HLS
Device dimensions	16611025mm
Weight	0.3kg
Stream control	CBR/VBR rate control, 16kbit/s~20Mbit/s network interface adopts 1000M full duplex mode, supporting HTTP, RTSP, RTMP, RTMPS, SRT, RTP, UDP multicast, UDP unicast, FLV, HLS and other protocols (RTMP supports username and password input function)

Key Features

Using standard H265/H264 encoding

Support one VGA local loop output

Support digital audio/analog audio loop out

Can support simultaneous output of 4 streams

No need to connect video, encode audio separately

Supports POE power supply (optional)

Fully supports ONVIF/GB28181 protocol and can be connected to NVR security platform

Audio encoding supports MP3/AAC/G711

Audio supports left and right channels, and supports volume adjustment

Applications

Multi platform online live streaming promotion

Through RTMP, SRT, RTSP, HLS protocols, it is directly pushed to stations B, Tiktok, YouTube and other platforms, and 1080P input is suitable for live broadcast of events and e-commerce.

Security monitoring platform access

Supports ONVIF/GB28181 integration with mainstream NVRs and security management platforms, suitable for cloud based monitoring of parks and buildings.

IPTV and Digital Television Broadcasting

Output TS/UDP multicast streams, compatible with hotel IPTV, digital signage, and streaming media servers.

Multi position guide switching

One signal is encoded simultaneously and combined with vMix/OBS to achieve multi machine switching and broadcasting.

FAQ

What is the highest supported resolution?

The specification parameters are up to 1920* 1080@60Hz Please select the matching resolution and frame rate based on the actual signal source capability.

What streaming media protocols are supported?

The supported protocols include HTTP, RTSP, RTMP, RTMPS, SRT, onvif, GB28181, RTP, UDP, multicast, unicast, etc., FLV, HLS. Can interface with mainstream platforms, NVRs, and streaming media servers.

What is the size of the equipment and how to install it?

The appearance specification is 166 * 110 * 25mm, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.

Does it support PoE power supply?

The specifications indicate support for PoE power supply (optional configuration), and a single Ethernet cable can simultaneously complete power supply and signal transmission, making it suitable for points with difficulty accessing power. Whether it is standard or not, please refer to the actual shipping configuration.

Technical Specifications

Full Parameter Table

Product Model		VGA HD Encoder/ZY-EV1401
Video and audio input	video input	1 VGA video interface
	Input resolution	1080P\1080i\720P\1600x1200\1400x1050\1440x900\ 1280x1024\1280x960\1280x800\1024x768\800x600\720 576 resolution and other conventional resolutions
	audio input	1 VGA built-in audio, 1 3.5 analog audio input/output
Video and audio encoding parameters	video encoding	H.265 Baseline Profile Encoding H.264 Baseline Profile Encoding H.264 Main Profile Encoding H.264 High Profile Encoding
	Size after encoding	1920 * 1080/1280 * 720/1024 * 576/960 * 540/850 * 480/720 * 576/720 * 540/720 * 480/720 * 404/704 * 576/640 * 480/640 * 360 Default input resolution
	Video Bitrate	CBR/VBR Rate Control 16Kbps-20Mbps Adjustable
	Video frame rate	≤ 60 frames
	Subtitle overlay	Chinese, English, and images
	Audio Encoding	AAC/MP3/G711 optional
	Audio bitrate	64Kb/s~384Kb/s
	sampling rate	32000, 44100, 48000, etc
Network parameters	network interface	1, RJ45 1000M adaptive Ethernet port
	network protocol	Supports HTTP, RTSP, RTMP, RTMPS, SRT, UDP, multicast, unicast FLV, HLS
	Stream code type	TS stream, ES stream
	interface protocol	ONVIF GB28181
	Configuration Management	WEB configuration, remote upgrade
General	Power supply	12V/DC 1A
	power consumption
	Operating Temperature	-20°C to +60°C
	Operating Humidity	<90%, no condensation
	Size (length X width X height)	16611025mm
	weight	0.3kg
