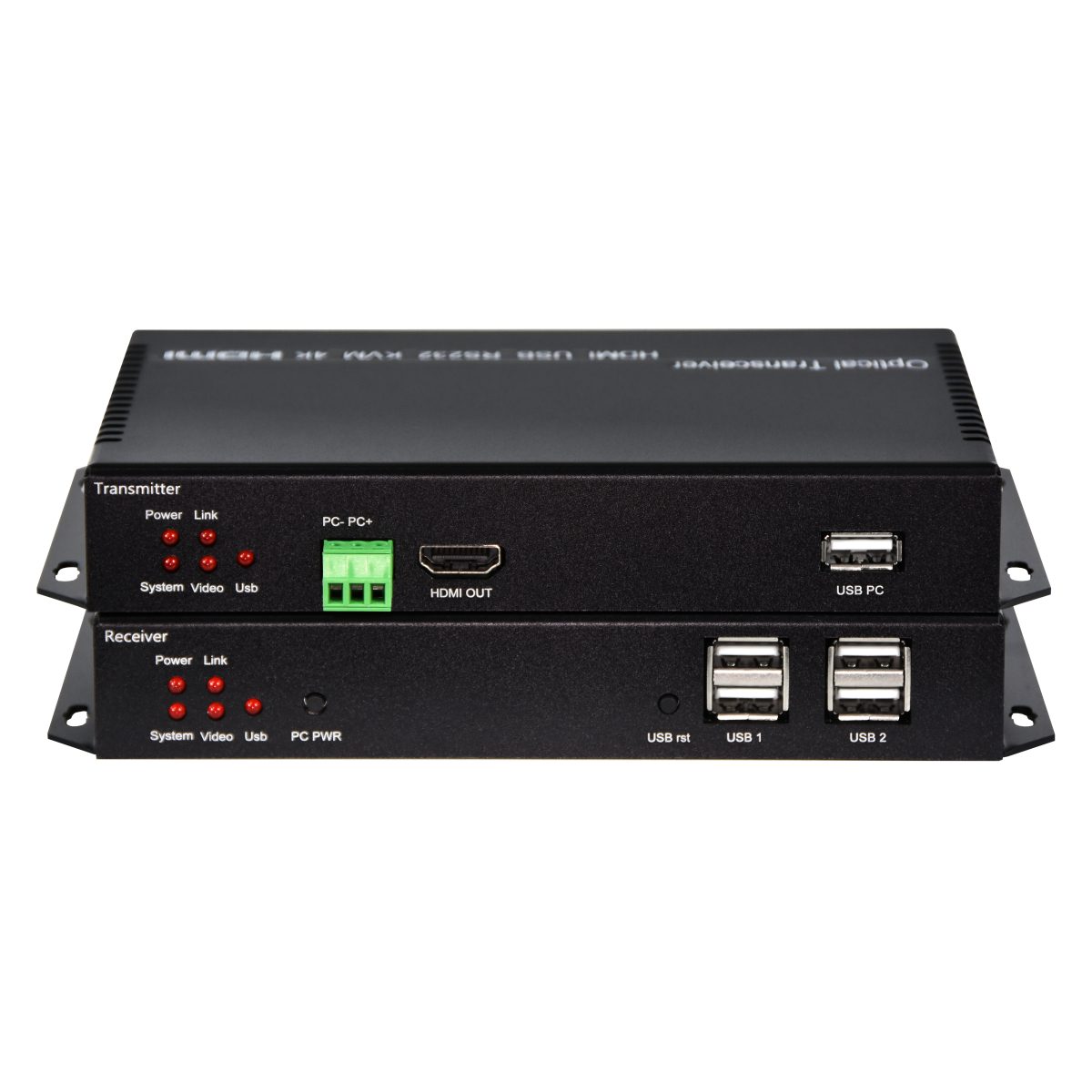

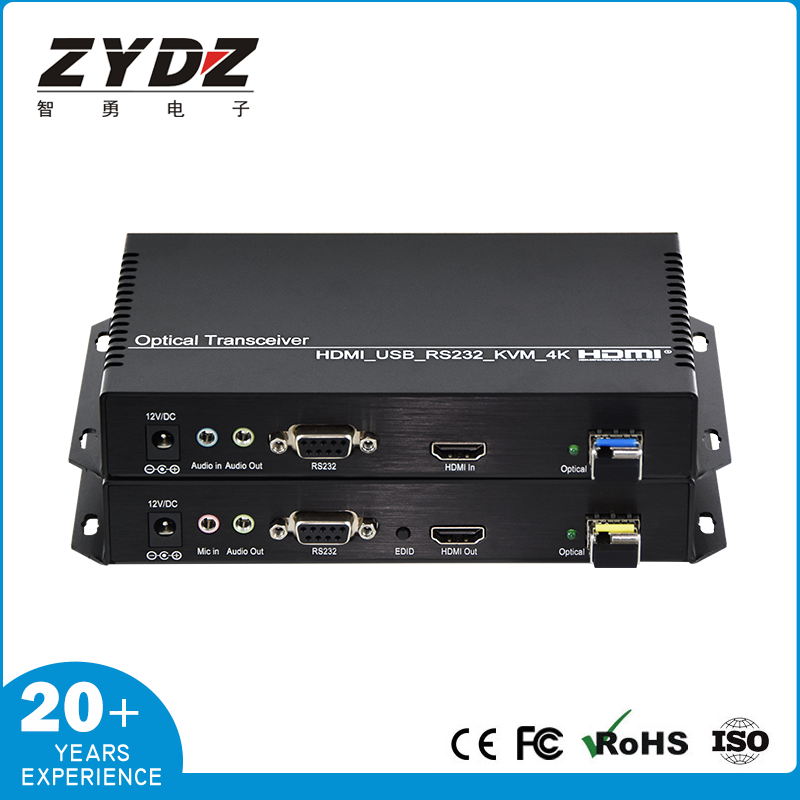

Name: 4K HDMI KVM optical transceiver remote power on/off
Brand: ORIVISION
SKU: ZY-OKH531
Availability: InStock

Model: ZY-OKH531

The optical transceiver has a 4K ultra high definition resolution and consists of a transmitter, receiver, and fiber optic components. This device achieves long-distance expansion of keyboard, mouse, speaker, microphone, HDMI signal, and RS232 through a single fiber optic cable. Users can display computer signals through the TV, and also place the keyboard, mouse, and microphone in front of the TV for operation. The receiver is equipped with four USB interfaces, which can be used to connect devices such as data USB drives, touch screens, printers, scanners, and even USB standard definition cameras. All signals are controlled through optical fibers and are compatible with HDCP 1.4 version, supporting remote power on/off function.

Model ZY-OKH531

TX Input HDMI * 1 USB * 1 RS232 * 1 3.5 Audio Input * 1 3.5 Audio Output * 1

TX Output LC optical port

RX Input LC optical port

RX Output HDMI * 1 RS232 * 1 3.5 audio output * 1 3.5 microphone input * 1 USB * 4

Max Resolution 3840* 2160@30HZ backward compatible

Transmission Distance 10KM (customizable)

Cable Single mode 1-core

Request a Quote

Overview

Key advantage: Support remote power on/off function

Specifications

Product Model	ZY-OKH531
Transmitter - Input Signal	HDMI * 1 USB * 1 RS232 * 1 3.5 Audio Input * 1 3.5 Audio Output * 1
Transmitter - Output Signal	LC optical port
Receiver - Input Signal	LC optical port
Receiver - Output Signal	HDMI * 1 RS232 * 1 3.5 audio output * 1 3.5 microphone input * 1 USB * 4
Maximum resolution	3840* 2160@30HZ backward compatible
Transmission distance	10KM (customizable)
Cable requirements	Single mode 1-core
Size	18.7X10.5X2.8CM
Net weight	Single unit 0.3kg
Power supply	DC 12V, 1A>>>>Related products 4K HDMI high-definition optical transceiver 4K@60Hz HDMI KVM uncompressed optical transceiver HDMI KVM high-definition uncompressed optical transceiver HDMI KVM plug and play - distributed network matrix splicing system. pdf ORIVISION full product brochure. pdf

Key Features

Support remote power on/off function

Support Gundam 3840x2160@30Hz High definition resolution

Supports bidirectional audio (forward audio, reverse microphone MIC)

Support EDID learning

Support RS232 transparent transmission (baud rate 115200)

Support one HDMI local loop output

High speed ASIC technology ensures near zero latency for remote imaging, keyboard, and mouse

Using single-mode single core LC fiber, standard configuration includes 10KM

Plug and play, no settings required

Remote USB supports USB external devices such as keyboard, mouse, USB flash drive, printer, scanner, etc

Applications

Rail Transit and Subway PIS

The signal transmission of the station hall and platform display screen is long-distance, resistant to electromagnetic interference, and ensures stable broadcasting of operational information.

Cross park security monitoring

Single mode fiber optic cables can travel up to 10 kilometers and are suitable for high-definition video transmission across buildings and parks.

KVM remote control extension

The keyboard and mouse signals are transmitted together with the 4K video to achieve remote centralized control of the computer room host.

Radio and television production

Lossless transmission of 4K baseband signals between studios, broadcasting vehicles, and production centers, without compression or delay.

FAQ

How far can the transmission distance reach?

According to the specifications, the transmission distance of this product is 10KM (customizable). The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameter is 3840* 2160@30HZ Downward compatibility. Please select the matching resolution and frame rate based on the actual signal source capability.

What are the power supply requirements?

The power supply specification is DC 12V, 1A. Related products include 4K HDMI high-definition optical transceiver 4K@60Hz HDMI KVM uncompressed optical port. Please ensure that the on-site power supply meets the requirements, and if necessary, configure a voltage regulator or UPS.

What is the size of the equipment and how to install it?

The appearance specification is 18.7X10.5X2.8CM, and desktop placement, wall mounting, or rack installation can be selected according to the site conditions.
