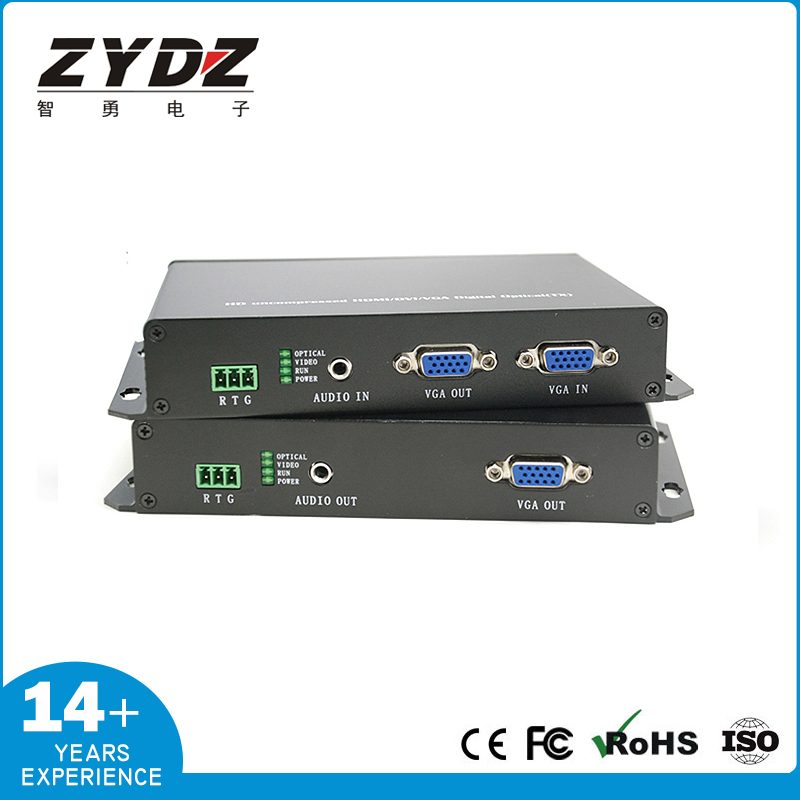

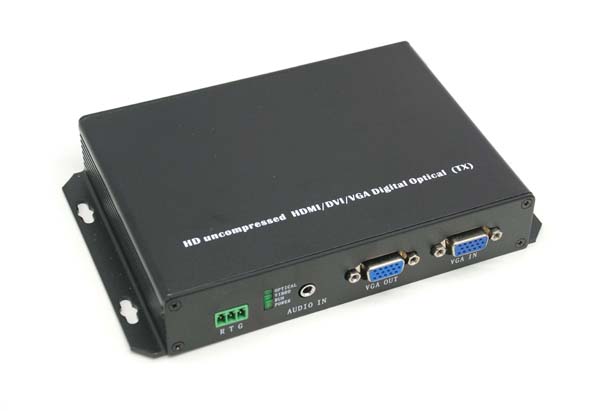

VGA KVM uncompressed optical transceiver

Name: VGA KVM uncompressed optical transceiver
Brand: ORIVISION
SKU: ZY-VGA-KVM-HA-T
Availability: InStock

Model: ZY-VGA-KVM-HA-T

The VGA optical transceiver adopts advanced uncompressed digital high-definition video and high-speed digital fiber transmission technology, which can easily transmit VGA high-definition signals of various resolutions output by computer hosts, high-definition video signal sources, high-definition DVD/DVR and other devices over long distances to remote ends. It also has local VGA loopback, independent analog audio, reverse 232 serial port, and strong anti-interference ability, ensuring signal integrity and stability.

Model ZY-VGA-KVM-HA-T/R

Max Resolution 1920X1200@60HZ

Transmission Distance Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m

Cable Single mode 1-core optical fiber

Dimensions 175mm (length) x 115mm (width) x 30mm (height)

Weight Sender: 0.4KG

receiving end 0.4KG

On site installation Simple and convenient, plug and play, no need to set product model

Request a Quote

Overview

Key advantage: All digital, uncompressed, high-definition fiber optic transmission

Specifications Summary

Product Model	ZY-VGA-KVM-HA-T/R
Maximum resolution	1920X1200@60HZ
Transmission distance	Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m
Cable requirements	Single mode 1-core optical fiber
Size	175mm (length) x 115mm (width) x 30mm (height)
Weight	Sender: 0.4KG
Receiving end	0.4KG
On site installation	Simple and convenient, plug and play, no need to set product model
Transmitting end	ZY-VGA-KVM-HA-T
Single mode	10 kilometers (standard), 30 kilometers, 60 kilometers, multimode: 300m cable requirement, single-mode 1-core fiber optic, working temperature and humidity <90%, no condensing power supply, 12V/1A DC size 175mm (length) x 115mm (width) x 30mm (height), weight

Key Features

All digital, uncompressed, high-definition fiber optic transmission

Compliant with VGA standard protocol

Equipped with independent analog audio

Equipped with local VGA loopback

With reverse R232 communication

Automatically identify and configure various display modes

Maximum resolution up to 1920 * 1200, compatible downwards

Single and multi-mode fiber optic transmission

Built in ESD protection circuit, which can effectively prevent static electricity loss

On site installation: simple and convenient, plug and play, no need for settings

Applications

Cross park security monitoring

Single mode fiber optic cables can travel up to 10 kilometers and are suitable for high-definition video transmission across buildings and parks.

KVM remote control extension

The keyboard and mouse signals are transmitted together with the 4K video to achieve remote centralized control of the computer room host.

Long distance high-definition extension

The 300 meter transmission distance covers large venues, factories, and campus backbone cabling.

Radio and television production

Lossless transmission of 4K baseband signals between studios, broadcasting vehicles, and production centers, without compression or delay.

FAQ

How far can the transmission distance reach?

According to the specification parameters, the transmission distance of this product is single-mode: 10 kilometers (standard) 30 kilometers 60 kilometers multimode: 300m. The actual distance may be affected by wire quality, on-site interference, and joint technology. It is recommended to reserve a margin for engineering deployment.

What is the highest supported resolution?

The specification parameters are 1920X1200@60HZ Please select the matching resolution and frame rate based on the actual signal source capability.

What is the size of the equipment and how to install it?

The appearance specifications are 175mm (length) x 115mm (width) x 30mm (height), and can be selected for desktop placement, wall mounting, or rack installation according to site conditions.

Does it support KVM key mouse transmission?

This product supports the transmission of keyboard and mouse signals along with videos, enabling remote control of the keyboard and mouse on the host.

Technical Specifications

Full Parameter Table

Product Model	Sender: ZY-VGA-KVM-HA-T Receiver: ZY-VGA-KVM-HA-R
Sending end - Input signal	1 VGA, 1 RS232, 1 3.5 analog audio
Sending end - output signal	1-channel LC
Receiver - Input Signal	1-channel LC
Receiver - Output signal	1 HDMI, 1 RS232, 1 3.5 analog audio, 2 USB
Maximum resolution	1920X1200@60HZ
Transmission distance	Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m
Cable requirements	Single mode 1-core optical fiber
Operating Temperature	-20°C to +60°C
Environmental Humidity	<90%, no condensation
Power supply	12V/1A DC
Size	175mm (length) x 115mm (width) x 30mm (height)
Weight	Sender: 0.4KG Receiver: 0.4KG

Product Connection Diagram

Product Model	ZY-HDMI-HA-TR	ZY-DVI-HA-TR	ZY-VGA-HA-TR	ZY-HDMI-KVM-HA-TR	ZY-DVI-KVM-HA-TR	ZY-VGA-KVM-HA-TR
Sender - Input	HDMI, Audio, RS232	DVI, Audio, RS232	VGA, Audio, RS232	HDMI, Audio, RS232	DVI, Audio, RS232	VGA, Audio, RS232
Sender - Output	LC	LC	LC, VGA	LC	LC	LC, VGA
Receiver - Input	LC	LC	LC	LC	LC	LC
Receiver - Output	HDMI, Audio, RS232	DVI, Audio, RS232	VGA, Audio, RS232	HDMI, Audio, RS232, USB	DVI, Audio, RS232, USB	VGA, Audio, RS232, USB
Maximum resolution	1920*1200@60Hz	1920*1200@60Hz	1920*1200@60Hz	1920*1200@60Hz	1920*1200@60Hz	1920*1200@60Hz
Transmission distance	Single mode: 10 kilometers (standard) 30 kilometers 60 kilometers Multi mode: 300m
Cable requirements	Single mode 1-core optical fiber
Power supply	12V/1A DC
Size	175mm (length) x 115mm (width) x 30mm (height)
Weight	Single unit 0.4KG
